X-CLOUD Data Service is an intelligent management platform which integrates Internet of Things with the membrane system. It is derived from XMEM’s distributed applications in Europe for many years. Remote system connects the Cloud through the data box, therefore, remote intelligent management is introduced into the membrane system. Through that, the membrane operation data and maintenance system can be monitored and analyzed for real-time. Cloud data could be transferred to PC webpage or mobile phone WeChat through the wireless network ,which achieves remote intelligent management.
- Real-time data
-
synchronous display the system operating parameters
pressure/flow/water quality

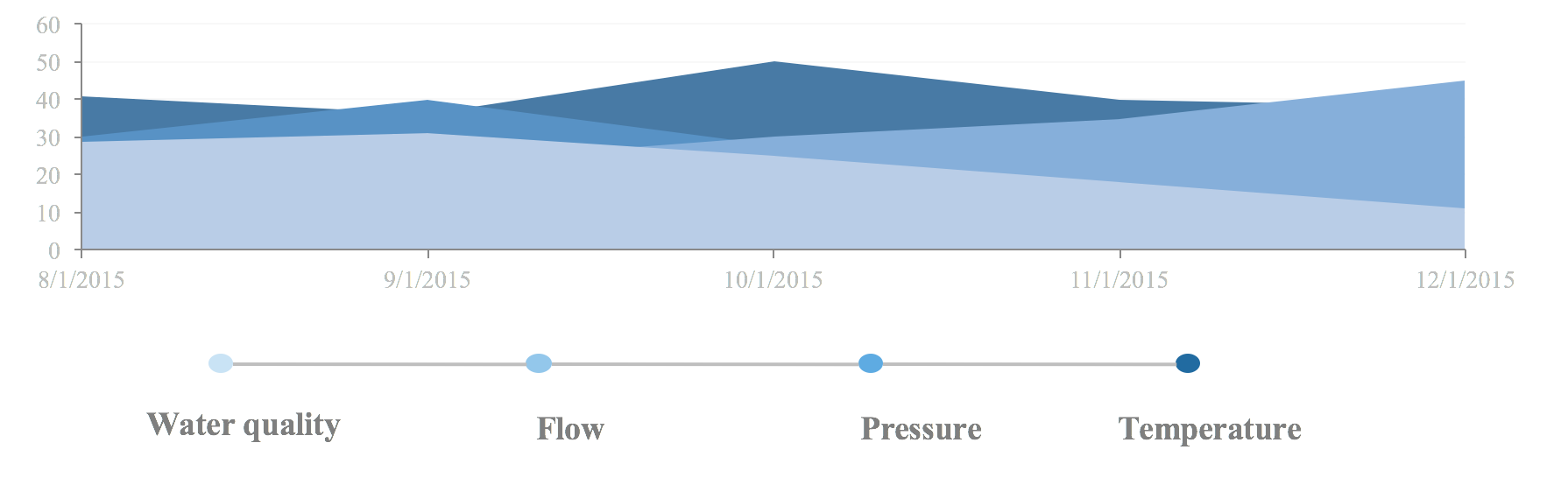

- Historical curve
-
personalized searching about history parameters
comparative analysis
trend judgment
- Alarm push
- timely detection of abnormal circumstances
- Expert service
-
Real-time interaction
Common perspective
Analyze specific issues

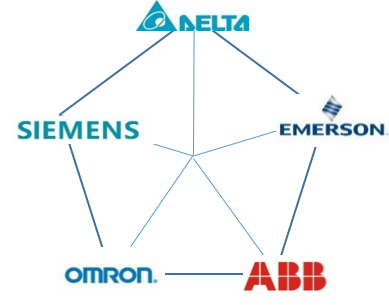

- Compatible with various PLC protocols
- Customize the selection of data range
- International standard certification, safe and secure
- Mobile office management
- System optimization to reduce failures and hidden trouble
| model | BOX-4G |
|---|---|
| network access method | Ethernet、4G |
| CPU | 300MHz ARM Coretex-A8 |
| storage | 128MB Flash+128MB DDR3 |
| SD Card | compatible |
| Communication port |
COM1：RS232/RS485/RS422 COM2：RS485 COM3：RS232 |
| Overall dimensions | 130mmx94x48mm |
| Total weight | 400g |
Why are we on WeChat? WeChat has become an important means of modern communication in Asia, and especially in China. As more customers coming from Asia, we believe it’s vital to have good communication with our Asian business community. After launching a special Asian business website, entering WeChat is a new step in optimising and intensifying the relationship with our Asian customers. So make sure to follow us on WeChat, stay in touch and keep up to date!
